DELTA®-DRAIN 2000 HI-X Heavy-Duty Drainboard

The Problems

Without a proper drainage system, water can damage virtually any construction project. An improper waterproofing system that lacks a drainage system can allow hydrostatic pressure to build, making any crack in the foundation an access for water damage.

The Solution

DELTA®-DRAIN 2000 HI-X is a drainage board that provides high compressive strength, excellent drainage capacity, and exceptional long-term performance. DELTA®-DRAIN 2000 HI-X meets the requirements for light commercial applications and shallow depth foundations.

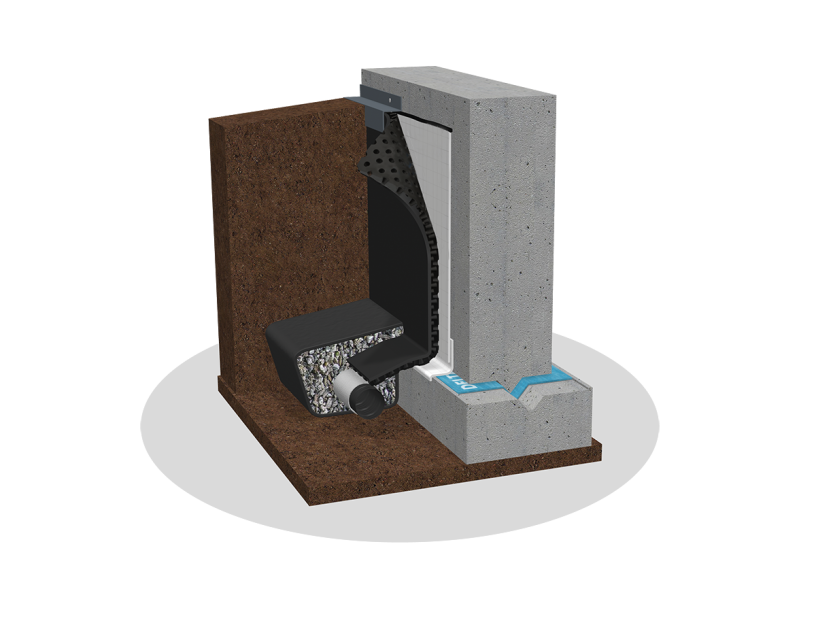

DELTA®-DRAIN 2000
Product Details
Product Benefits
  • Composed of a high-strength, needle punched, non-woven polypropylene geotextile
  • The geotextile is fully bonded to the dimpled drainage core
  • High-performance drainage capabilities
  • Non-woven, needle-punched geotextile prevents the passage of soil particles, but allows water to pass freely, ensuring that the drainage core will not get clogged
  • Core provides a continuous path for water discharge, eliminating the potential for build-up of hydrostatic pressure
  • Geotextile is fully bonded to the drainage core, which prevents it from being pushed into the flow channels by the load from adjacent back-fill material
  • Compressive strength of 11,000 psf – can be used at installation depths of 30 ft. and more
  • One of the only drainboards on today's market made out of a special copolymer polypropylene, which is dramatically stronger than polystyrene imitators, resisting jobsite damage and rough handling
  • Unaffected by environmental stress cracking
  • Effective drainage system for underground wall construction, retaining walls, bridge abutments, and as hydrostatic pressure relief layer in canal construction
  • Available in two roll sizes (4'x50' or 6’x50')

Architectural Details

Guide Specifications

Installation Guides

Product Details

Safety Data Sheets

Technical Data

Related Accessories

  • DELTA®-GRIP FASTENER for Waterproofing Membranes

    DELTA®-GRIP FASTENER for Waterproofing Membranes

    DELTA®-GRIP FASTENER has a self-adhesive backing and effectively secures DELTA®-MS, DELTA®-DRAIN, and all DELTA® drainage composites.
  • DELTA®-MOLD STRIP for Membrane Installation

    DELTA®-MOLD STRIP for Membrane Installation

    Use DELTA®-MOLD STRIP to finish installation of DELTA®-MS and DELTA®-DRAIN. Use around windows, doors, or grade changes in the foundation.
  • DELTA®-SCREW FASTENER for Drainage Membranes

    DELTA®-SCREW FASTENER for Drainage Membranes

    DELTA®-SCREW FASTENERS work to fix drain boards to perimeter insulating boards without penetrating your waterproof membrane. Ideally used with DELTA®-DRAIN.
  • DELTA®-SEALANT Elastic Sealing Compound

    DELTA®-SEALANT Elastic Sealing Compound

    Use DELTA®-SEALANT when installing DELTA®-MS and DELTA®-DRAIN to seal any gaps in the membrane created at corners where a tight fit isn’t possible.
